Accessories For Additional Functions
Accessories For Additional Functions
Parameter setting:
1.Confirm the motor rated value P1-01—P1-06 according to the motor nameplate after power on.
2.Set the encoder related parameters P1-23—P1-28 according to the encoder nameplate
3.Set P1-00,→ choose “2”, →Press “RUN”, system starts self-learning.
4.After self-learning completed, press P0-01 motor control mode,→choose “2“vector control with speed sensor (FVC).
5.Set the required frequency and run according to the operation
6.Press and hold PRG to display the U-00 monitoring parameters, and use the left and right arrow keys to switch to U-44. The display value is the encoder feedback frequency
Constant pressure water supply controller
Through the constant pressure water supply control board, there is no need for an external control circuit to achieve constant pressure water supply 1 to 3, 1 to 4 work frequency conversion control.
Adapt to EC610,650 series
LCD keyboard
LCD Chinese or English one-key shuttle keyboard with parameter copy function.
Adapt to EC610,650,670,6000 series
LED dual display large keyboard (customized)
Two-line LED digital display one-key shuttle keyboard, with parameter copy function.
Adapt to EC610,650,6000 series
LED single display keypad
LED digital single-line display keyboard (external cited).
Adaptto EC590,SMA series
Keyboard extension base
Large base :Adapt to EC610,650,670,680, 6000 series
Small base : Adapt to EC590,SMA series
4G network keyboard (customized)
No display, support 4G wireless signal mobile phone remote control.
Bluetooth keyboard (customized)
Bluetooth communication
Adapt to EC610,650,6000 series

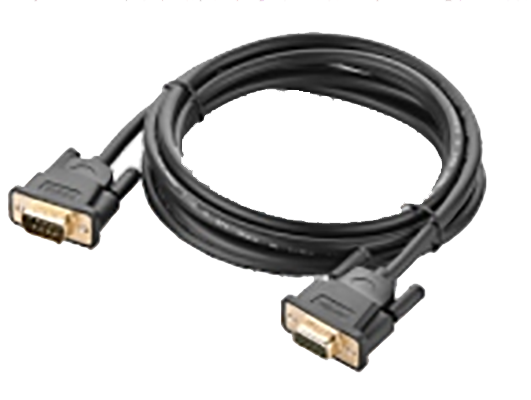

External cable to keyboard
9-core / 9-pin trapezoidal port with magnetic ring shielded wire.
Adapt to EC610,650,670,680, 6000 series
External cable to keyboard
Adapt to the full range
Note: Above pictures are for reference only due to hardware & software upgrade and the actual product shall prevail.
